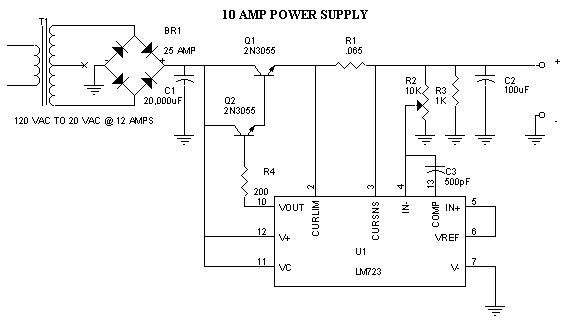

BR1 25 AMP
C1 20,000uF
40 VDC
C2 100uF
25 VDC
C3 500pF
Q1,Q2 2N3055
R1 .065
R2 10K
R3 1K
R4 200
T1 120 VAC
TO 20 VAC @ 12 AMPS
U1 LM723
Tips & Hints:
This Power Supply will deliver 8 amps continuous power and 10 amps surge. T-1 can be made from an old microwave transformer by removing the old secondary winding (high voltage winding) being careful not to damage the primary winding. After the Old secondary winding is removed wrap 20 turns of a pair of 16 ga. magnet wire make certain that each turn is lined up and that it is tight. This will help reduce humming noise from the transformer. Magnet wire is available at your local motor repair service relatively cheap!
R1 can be made by using 3 10 watt .2 ohm
resistors in parallel available from Newark
Electronics.
Part # 01F9262 C1 is also available from Newark Part # 47F2054 all remaining
components are available From Radio Shack.
